2018 Bell 505 Jet Ranger X
Always hangared
- Make
- Bell
- Model
- 505 Jet Ranger X
- Year
- 2018
- Seller
- 777AircraftSales
- Seller type
- Dealer
- Location
- TBA, Germany
- Condition
- Pre-owned
- Total Time
- 1100 h
- Undercarriage
- Other
- Seats
- 6
- Registration
- D-HSTV
Highlights
- On Board WiFi / Digital Audio Broadcast (DAB) Entertainment System
- Fresh 6 year + 3 year + 2 year + annual inspection ! (major inspection)
Interior

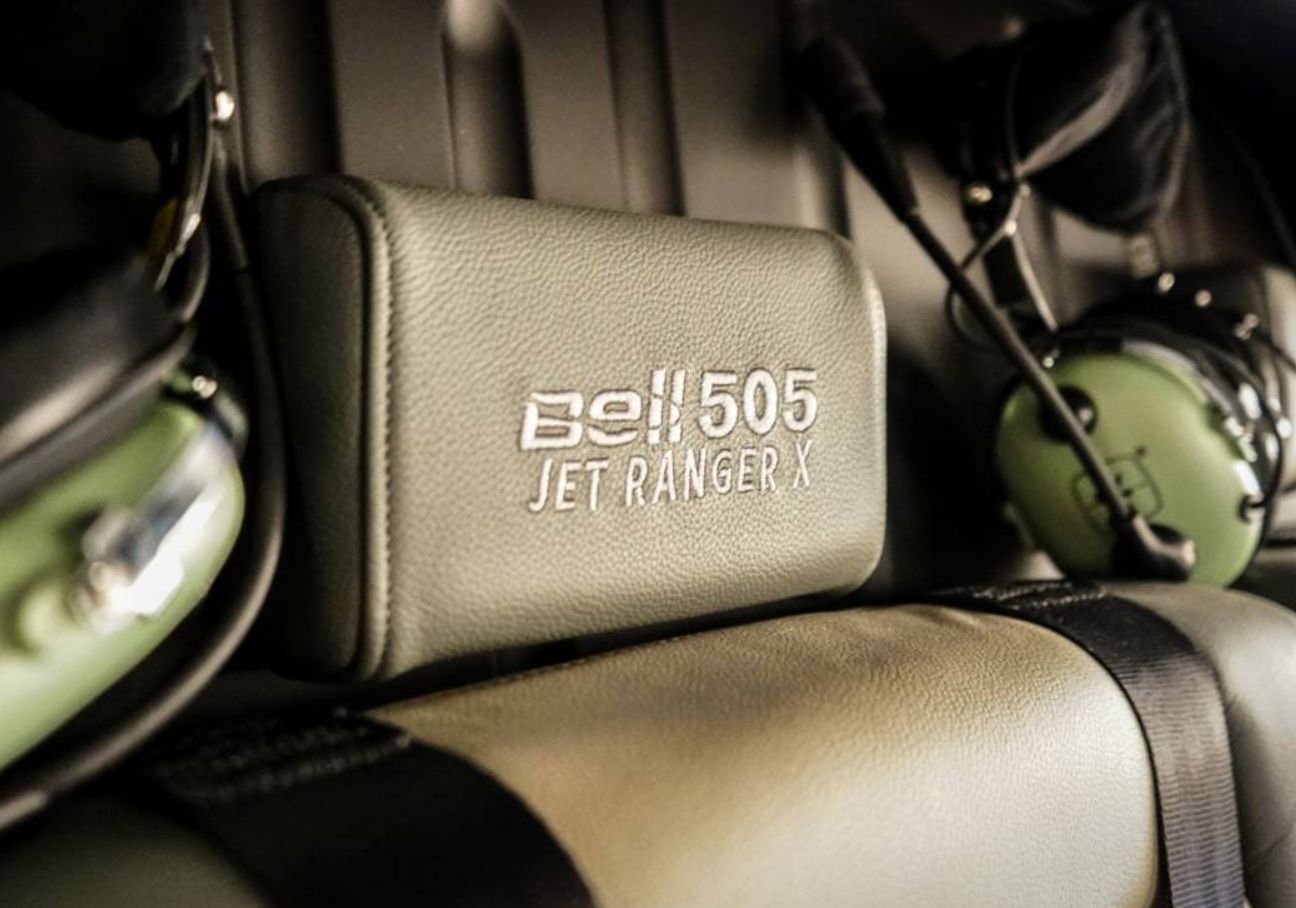

- VIP configuration (leader seat, head cushion, floor carpet, pilot equipment storage)
- Sliding Windows (Doors)
- On Board WiFi / Digital Audio Broadcast (DAB) Entertainment System
Maintenance
- All service carried out
- Always hangared
- CAMO oversighted (all ADs/SBs carried out)
Specifications
- Seat Configuration
- 1+4
- Gross Weight
- 2030 Kg
- Empty Weight
- 989 Kg
- Range
- 383 Nm
Engine
- Manufacturer, Model
- Safran Helicopter Engines, Arrius 2R
- ENGINE
- REMAINING TIMES
- CENTRIFUGAL COMPRESSOR - 95,41% 26715 cy
- GAS GENERATOR TURBINE - 14715 cy
- POWER TURBINE DISC REMANING - 97,78% 13689 cy
- REDUCTION GEAR MODUL - 63,33% 1.900 h
- GAS GENERATOR MODUL - 63,33% 1.900 h
- PUMP AND METERING VALVE - 63,33% 1.900 h
- PUMP AND METERING VALVE - 1.536month
- HP PUMP ASSY - 74,42% 3.200 h
- PREF: INJECTOR PIPE - On Condition
- FUEL INJECTOR PIPE LH - 27,25% 109 h (REPLACEMANT EVERY 400h)
- FUEL INJECTOR PIPE RH - 27,25% 109 h (REPLACEMANT EVERY 400h)
- DRIVE GEAR BEARING - 84,29% 5.900 h
- DRIVE GEAR BEARING - 84,29% 5.900 h
- INTERMEDIATE GEAR - 84,29% 5.900 h
- INTERMEDIATE GEAR - 84,29% 5.900 h
- INTERMEDIATE GEAR - 84,29% 5.900 h
- GAS GENERATOR BLADE - 81,67% 4.900 h
- GAS GENERATOR BLADE - 93,58% 18.715 cy
- POWER TURBINE BLADE - 97,78% 13.689 h
- Power
- 504
- Fuel Type
- Jet A-1
Interior equipment and modifications
- Other
- Rotor brake
- Dual controls

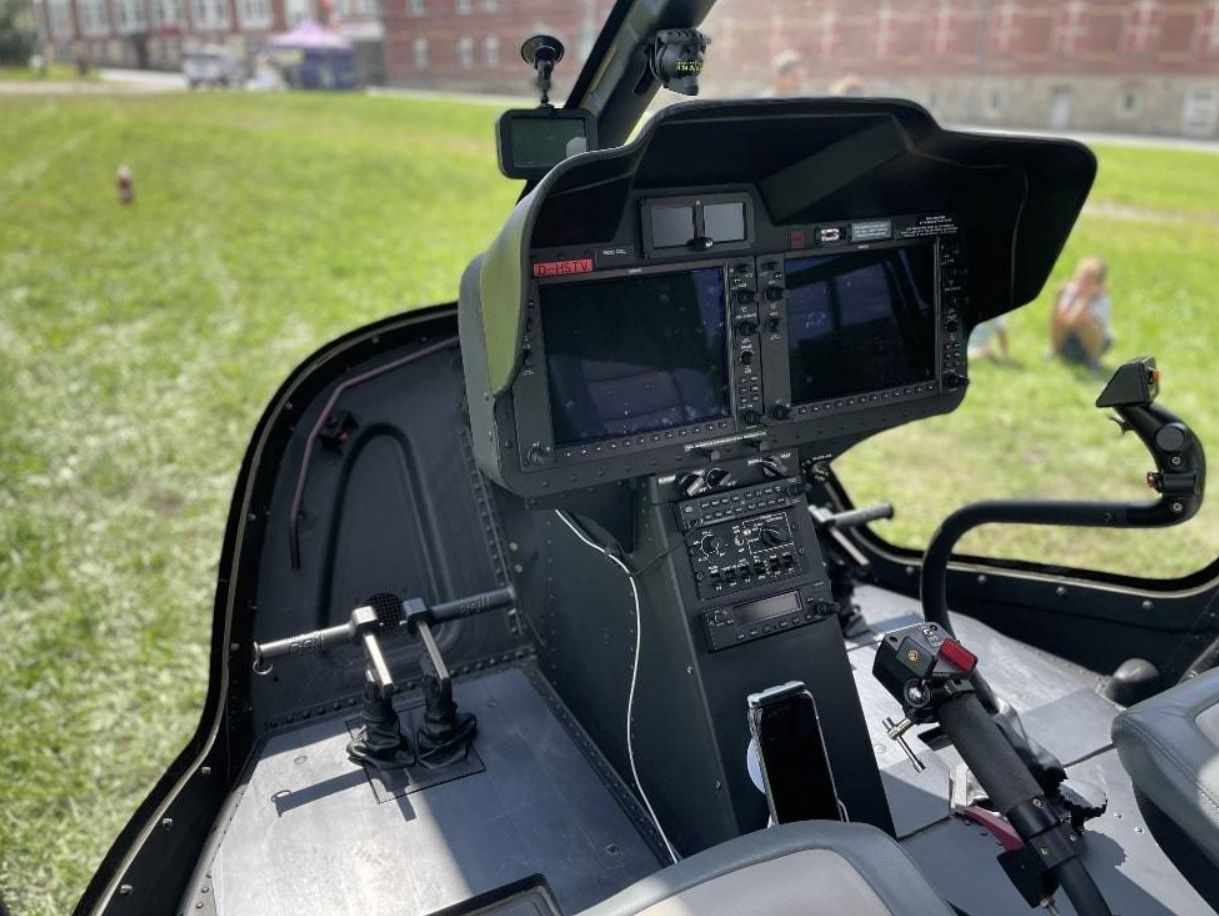

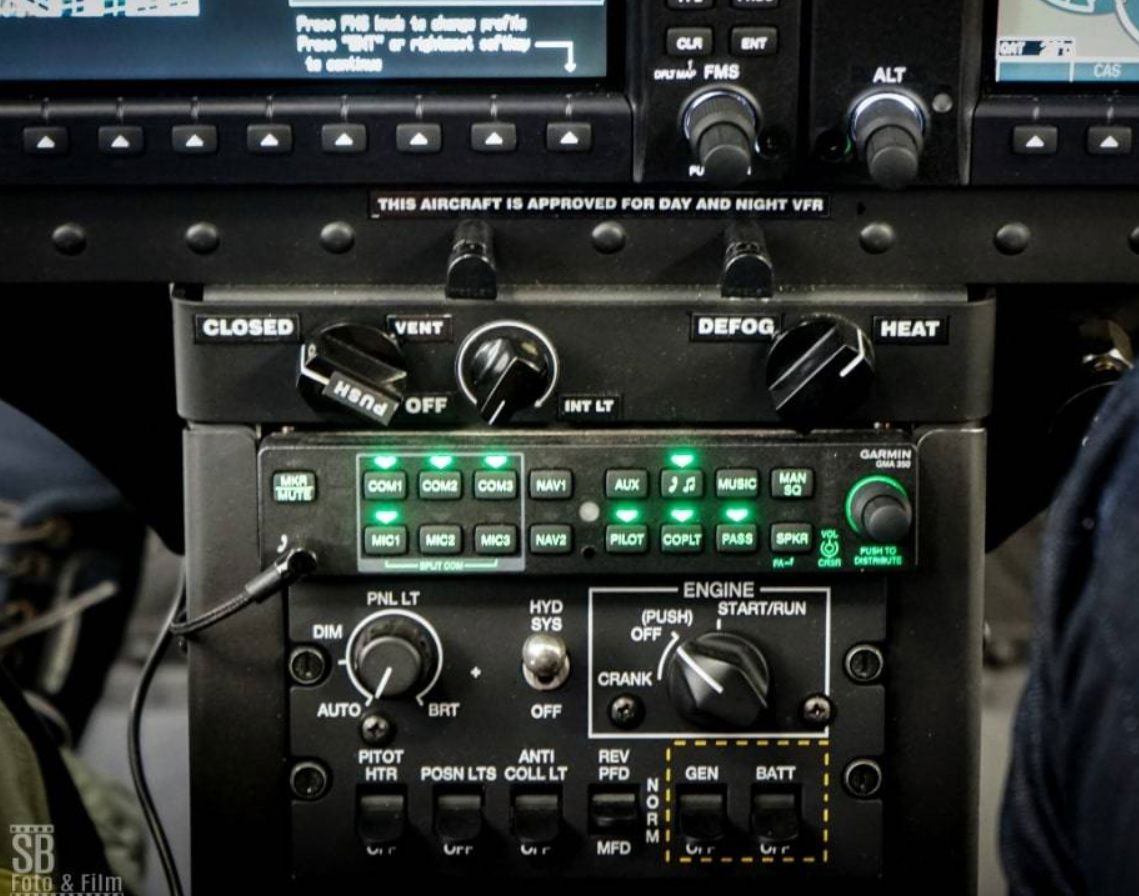

Avionics
- Other

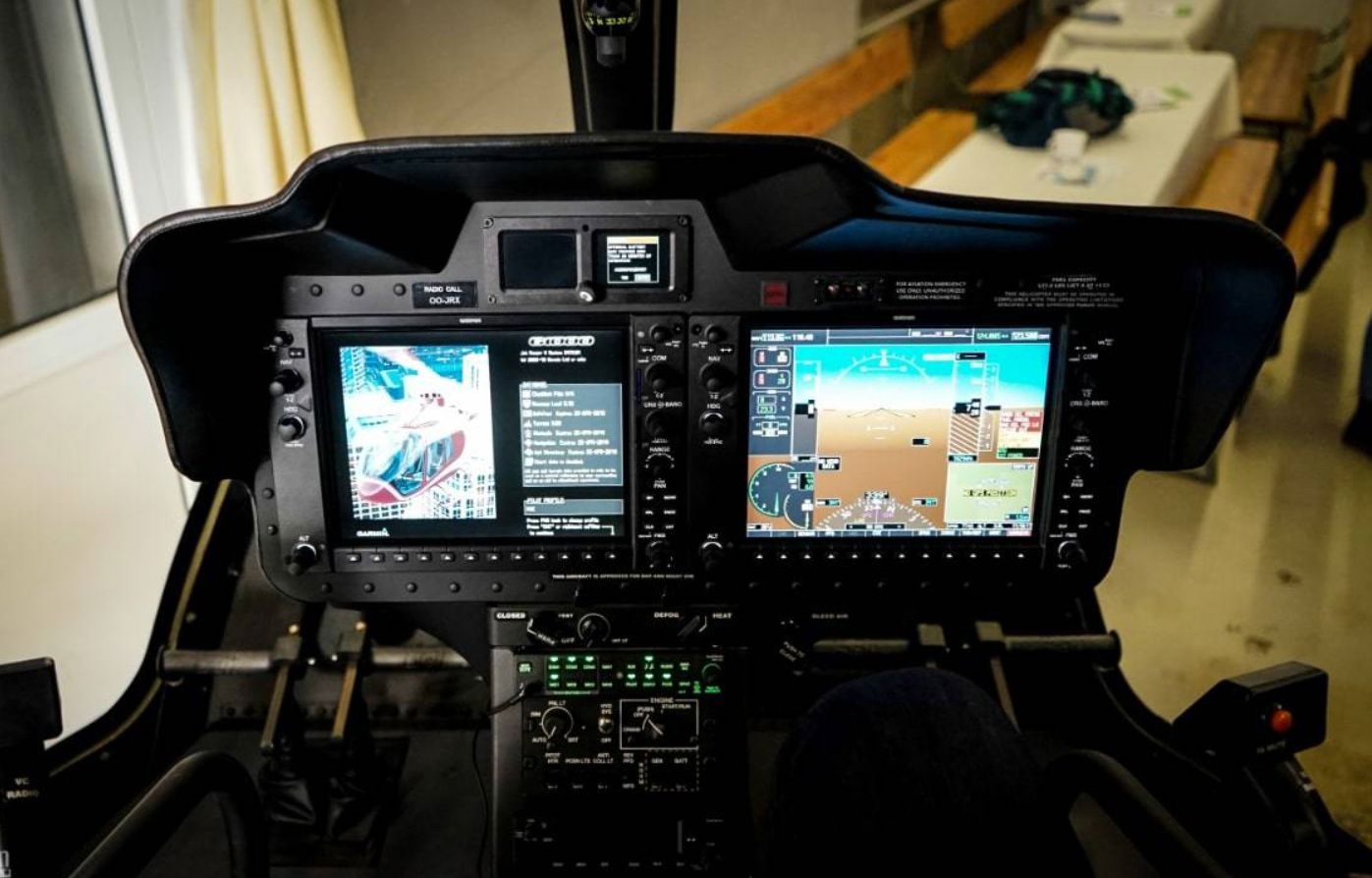

- Avionics Upgrade Package (Synthetic View, HTAWS, TAS, VOR/ILS)
- GARMIN 1000 database always updated
- Second VHF radio
- Radar Altimeter
Ground equipment
- Other
- Ground handling wheels
- Ground handling equipment (tow bar)
- Cover
- Operator convenience Package (cover cabin, blade strap, cover turbine outlet/intake)
