1941 Klemm 35D
Unique Oldtimer Aircraft
- Make
- Klemm
- Model
- 35D
- Year
- 1941
- Seller
- Tomplane
- Seller type
- Private
- Location
- Siegerland, Germany
- Condition
- Pre-owned
- Total Time
- 2809 h
- Engine Time
- 10 h
- Undercarriage
- Other
- Seats
- 2
- Flight Rules
- VFR Day
- Serial Number
- 1983
- Registration
- D-EGGA
Highlights
- The Klemm 35 D with the serial number 1983 was built in 1941 by „Leichtflugzeugbau Klemm GmbH“.
- This type with the special undercarriage is one of three still flying.
- The Klemm was completely overhauled in 2009.
Maintenance
- Airworthiness Until
- 05/15/2026
- Airworthiness Issued By
- LTB Follmann
Specifications
- Seat Configuration
- 1+1
- Gross Weight
- 746 Kg
- Empty Weight
- 546 Kg
- Useful Load
- 200 Kg
- Cruise Speed
- 100 Kt
- Fuel Burn
- 22 l/h
- Fuel Capacity
- 90 l
Engine

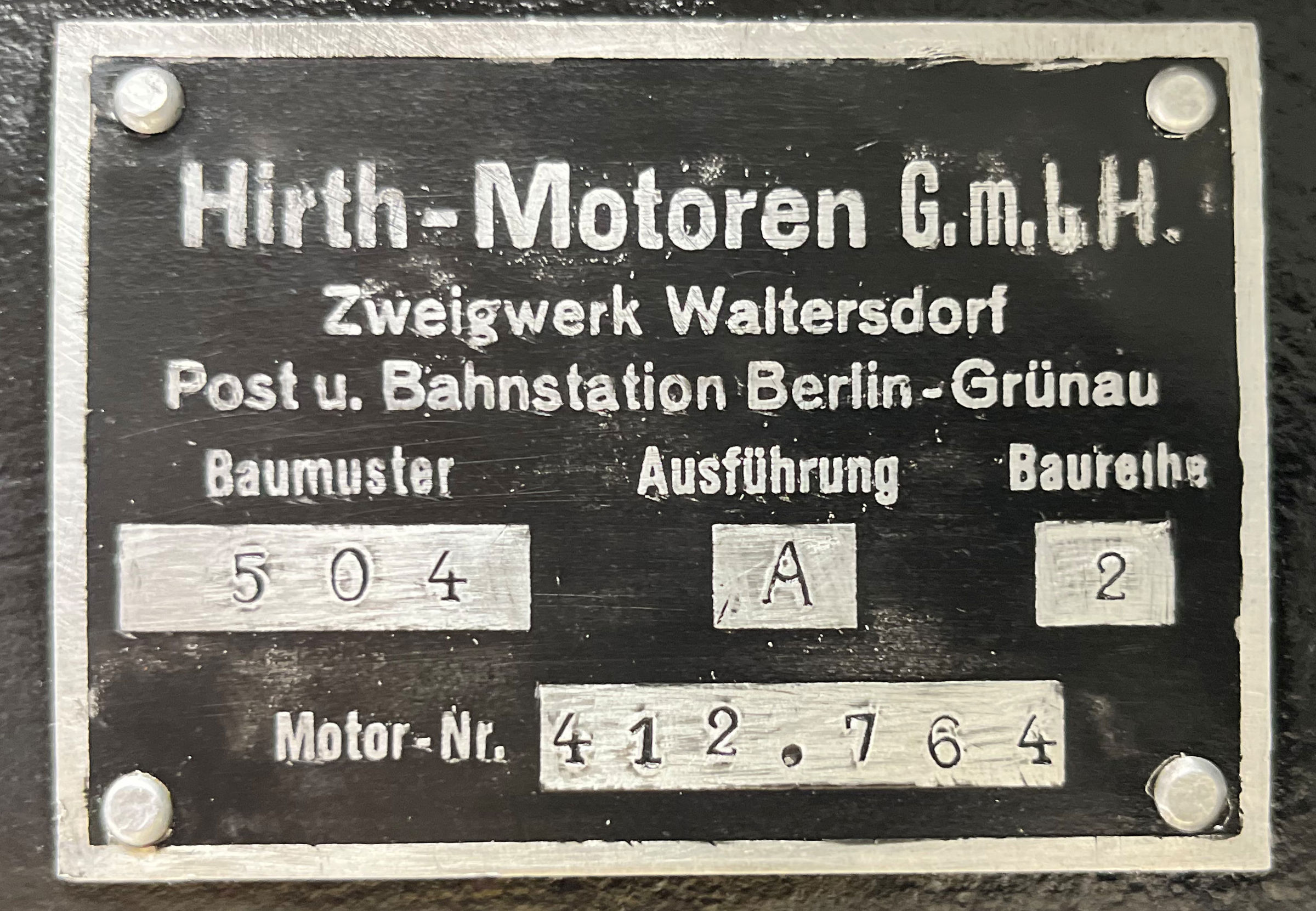

- Manufacturer, Model
- Hirth, 504 A2
- Power
- 105
- Fuel Type
- Avgas 100LL
- TSOH
- 10
- OHD
- 06/02/2023

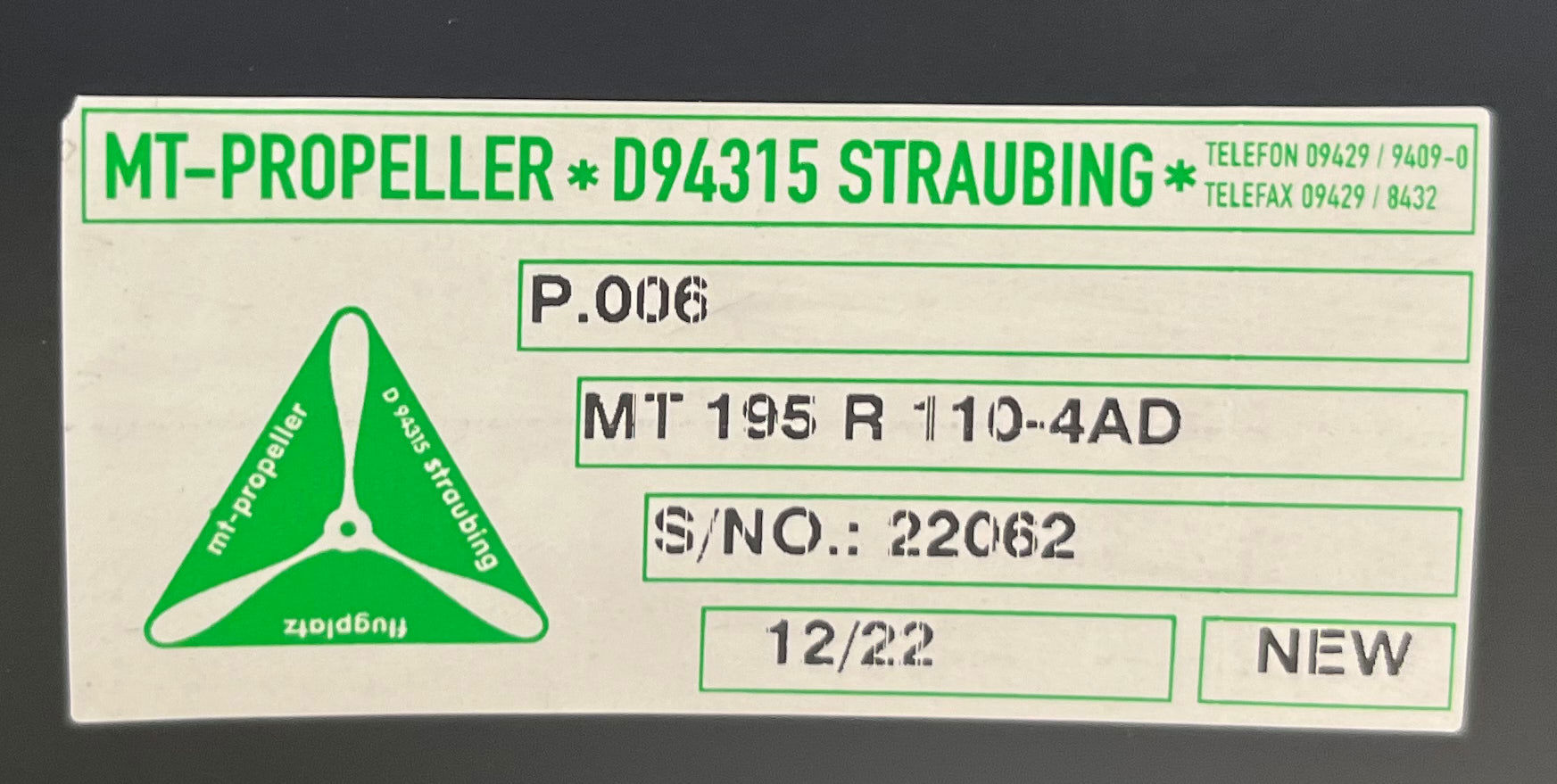

- Propeller
- ,
- Type
- Fixed Pitch
- TTSN
- 20
Avionics
- COM
- ICOM, IC-A220T (8.33kHz)
- XPNDR
- Filser Electronic, TRT800A
- TCAS
- Air Avionics TRX 1500
- ELT
- Ameri-King, AK-451
Additional Remarks
- The aircraft can be easily converted into the single seat version.
- The Hirth HM 504 A2 engine was overhauled in 2023 by LTB Bende and has been running only a few hours since.
- Bosch Magnetos and SUM carburetor.
